IP65 Waterproof LED Strip

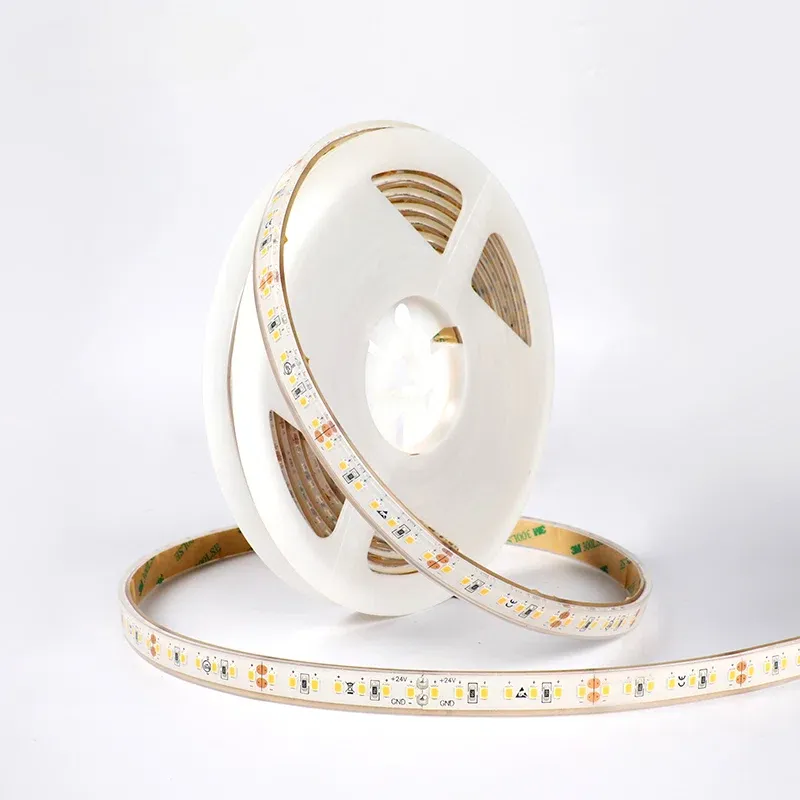

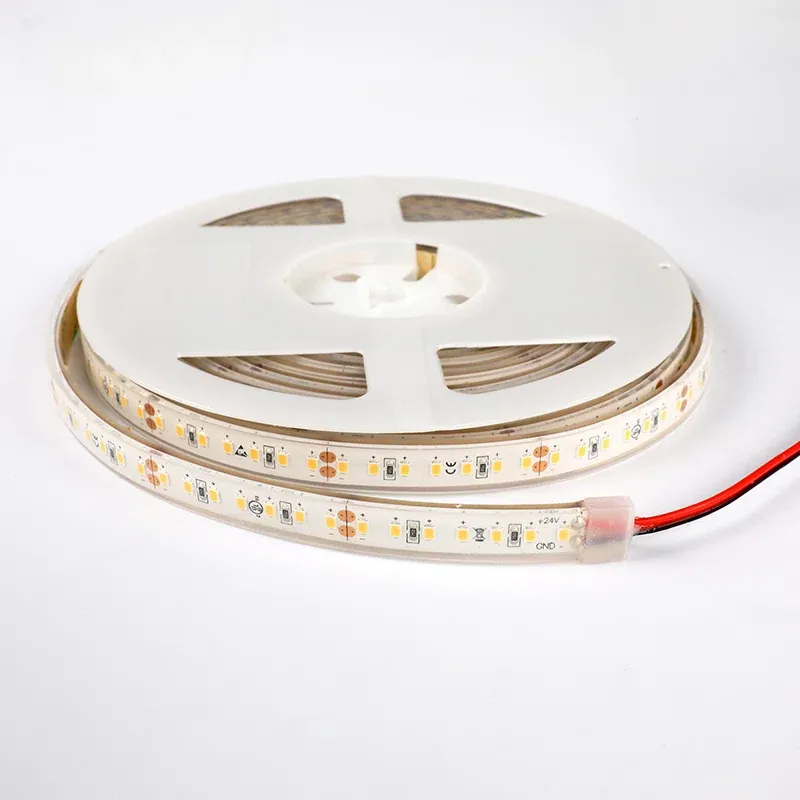

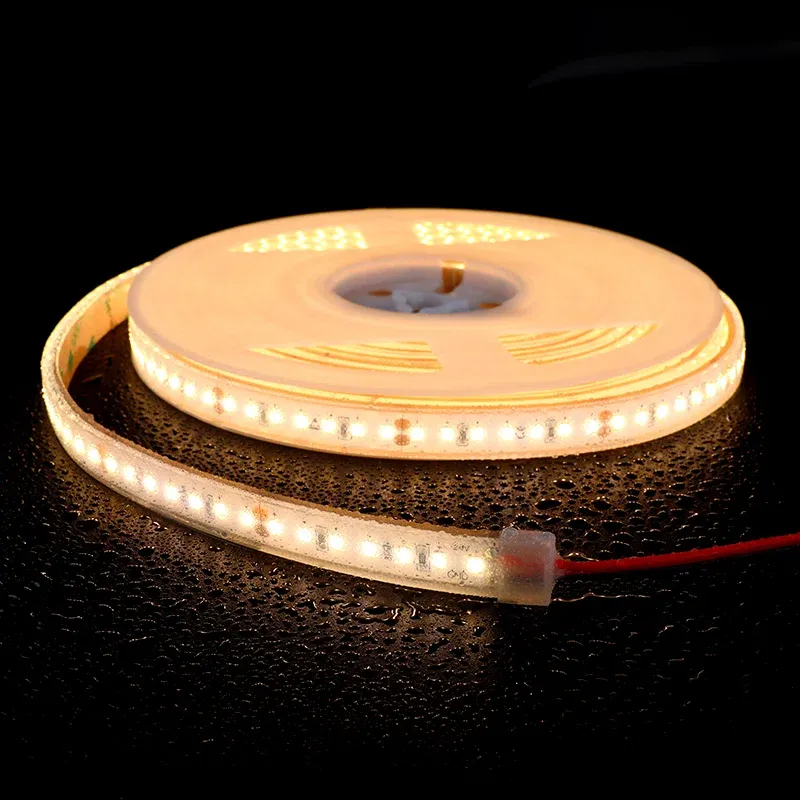

HST-SMD28120-IP67 120 LEDs/m SMD2835 IP67 Waterproof LED Strip
HST-SMD28120-IP67 is a 120 LEDs/m SMD2835 waterproof LED strip featuring 12W/m, Ra80+ CRI and IP67 protection. Available in 12V and 24V DC with 25mm or 50mm cutting units. Designed for outdoor, architectural, landscape and commercial lighting projects, with OEM/ODM options for PCB, CCT, power, length, cables, connectors and packaging.
Specifications
- Model
- HST-SMD28120-IP67
- LED Type
- SMD2835
- LED Density
- 120 LEDs/m
- PCB Width
- 10 mm
- Voltage
- 12V / 24V DC
- Power
- 12 W/m
- Color Temperature
- 2700K / 3000K / 4000K / 6000K
- CRI
- Ra 80+
- IP Rating
- IP67
- Cutting Unit
- 25 mm (12V) / 50 mm (24V)
HST-SMD28120-IP67 120 LEDs/m SMD2835 Waterproof LED Strip
HST-SMD28120-IP67 is a 10mm PCB SMD2835 waterproof LED strip featuring 120 LEDs/m density, 12W/m power and IP67 protection.
Designed for outdoor, architectural and moisture-prone lighting applications, this LED strip provides consistent linear illumination while helping protect the LED circuit from water and environmental exposure.
Available in 12V and 24V DC, with multiple color temperature options and OEM/ODM customization support, HST-SMD28120-IP67 is suitable for landscape lighting, building facade lighting, commercial projects and customized LED lighting installations.
Key Specifications
Parameter | Value |
|---|---|
Model | HST-SMD28120-IP67 |
LED Type | SMD2835 |
LED Density | 120 LEDs/m |
PCB Width | 10 mm |
Voltage | 12V / 24V DC |
Power | 12W/m |
Color Temperature | 2700K / 3000K / 4000K / 6000K |
CRI | Ra80+ |
IP Rating | IP67 |
Cutting Unit | 25 mm (12V) / 50 mm (24V) |
Selection Tip
12V or 24V – Which Version Should You Choose?
Choose the voltage according to the required installation length, cutting requirement and power supply configuration.
12V Version
- 25 mm cutting unit
- Suitable when shorter cutting increments are required
- Provides more flexibility for customized installation lengths
24V Version
- 50 mm cutting unit
- Operates at lower current than the 12V version at the same power level
- Generally preferred for longer linear lighting installations where reducing voltage drop is important
For longer installations, the actual running length should still be evaluated according to PCB resistance, cable size, power-feed position, installation length and operating conditions.
Important IP67 Installation Note
IP67 protection depends on the complete installation system, not only the LED strip itself.
After cutting the strip, the cut ends, cable outlets, joints and connectors must be properly sealed to maintain the required waterproof protection.
For applications involving continuous immersion or underwater installation, please contact HST Light to confirm the appropriate waterproof solution.
Why Choose HST-SMD28120-IP67 Waterproof LED Strip?
IP67 Waterproof Protection
Designed for wet, humid and outdoor lighting environments when cable connections, joints and cut ends are correctly sealed.
120 LEDs/m High Density
The 120 LEDs/m configuration provides consistent linear illumination for architectural, landscape and commercial lighting applications.
SMD2835 LED Platform
The SMD2835 LED configuration combines high LED density with a practical 10mm PCB design for professional linear lighting projects.
12V and 24V Options
Two voltage options allow buyers to select the appropriate solution according to cutting requirements, installation length and power distribution design.
Defined Cutting Units
- 25 mm cutting unit for 12V
- 50 mm cutting unit for 24V
This makes it easier to plan customized lengths for different installation requirements.
OEM / ODM Customization Support
HST Light supports project-based customization including PCB, voltage, CCT, CRI, power, length, waterproof requirements, cables, connectors and packaging.
Typical Applications
HST-SMD28120-IP67 is suitable for applications such as:
- Outdoor architectural lighting
- Landscape lighting
- Garden lighting
- Building facade lighting
- Hotel and hospitality projects
- Commercial lighting
- Residential outdoor decoration
- Cove and concealed lighting

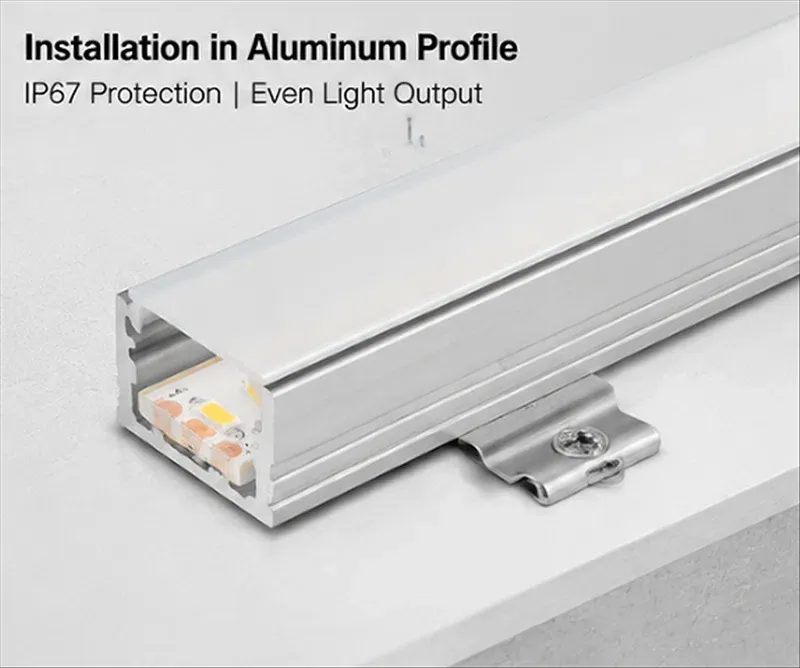

- Aluminum profile lighting systems
For outdoor installations, the complete system — including the LED strip, cable, connector, joint and end sealing — should be selected according to the actual installation environment.
Quality & Trust
HST Light waterproof LED strips are manufactured under controlled production and quality inspection procedures.
Key product specifications can be checked during production, including:
- Appearance
- Electrical performance
- Power consumption
- LED function
- Brightness consistency
- Waterproof construction
- Cable and connector configuration
For customized products or project-specific requirements, sample evaluation is recommended before mass production.
This allows customers to verify electrical performance, lighting performance, waterproof construction and installation compatibility before confirming bulk orders.
Request a Quote or Sample
Need a Waterproof LED Strip for Your Project?
Send us your required specifications, application details and estimated quantity.
For a faster quotation, please provide:
- Required voltage
- Color temperature
- CRI requirement
- Required strip length
- Order quantity
- Installation environment
- Waterproof requirement
- Cable length
- Connector type
- Power supply method
- Packaging requirement
Our team will help evaluate the appropriate LED strip configuration for your project.
Contact HST Light for pricing, samples or customized project support.
OEM / Customization
OEM & ODM Waterproof LED Strip Solutions
HST Light provides OEM and ODM customization services for distributors, wholesalers, lighting brands, contractors and project customers.
Customization options include:
- PCB: PCB width and project-specific PCB design
- Voltage: 12V / 24V and project-specific configurations
- LED Density: LED quantity according to product requirements
- CCT: Color temperature customization
- CRI: CRI options according to project requirements
- Power: Power adjustment according to application requirements
- Length: Custom strip and cable lengths
- IP Requirement: Waterproof solutions according to the installation environment
- Connectors: Connector type and connection method
- Cable: Cable type, outlet direction and cable length
- Packaging: OEM labels, reels, cartons and customized packaging
For non-standard specifications, HST Light can arrange sample development and testing before mass production to verify the final product configuration.
FAQ
Q1: Can I request waterproof LED strip samples before bulk production?
Yes. Samples can be provided for evaluation before mass production.
Customers can check:
- Lighting performance
- Color consistency
- Electrical specifications
- Waterproof construction
- Installation compatibility
- Cable and connector configuration
Sample testing is especially recommended for customized specifications and project-based products.
Q2: What should be considered when installing an IP67 LED strip outdoors?
Waterproof performance depends on the complete installation system.
The LED strip, cable outlets, connectors, joints and cut ends should all be correctly sealed according to the required installation environment.
If the strip is cut during installation, the new cut end must be properly resealed before use.
Q3: Can this waterproof LED strip be customized?
Yes.
Available OEM/ODM options can include:
- PCB design
- LED density
- Voltage
- Power consumption
- Color temperature
- CRI
- Strip length
- Waterproof requirement
- Cable length
- Connector type
- Packaging and labeling
Please provide your required specifications so our team can evaluate the appropriate solution.
Q4: What applications are suitable for IP67 LED strips?
IP67 waterproof LED strips can be used for applications such as:
- Outdoor lighting
- Landscape projects
- Architectural lighting
- Garden lighting
- Building facade lighting
- Commercial projects
- Hospitality applications
- Moisture-prone environments
The actual waterproof requirement should always be selected according to the installation environment.
Q5: What is the recommended running length?
The recommended running length depends on several factors, including:
- Working voltage
- Power consumption
- PCB resistance
- Cable size
- Installation length
- Power-feed position
- Installation method
For longer installations, the 24V version is generally preferred because it operates at lower current for the same power level and can help reduce voltage drop.
For project-specific lengths, HST Light can help evaluate the power-feed and wiring configuration before production.
