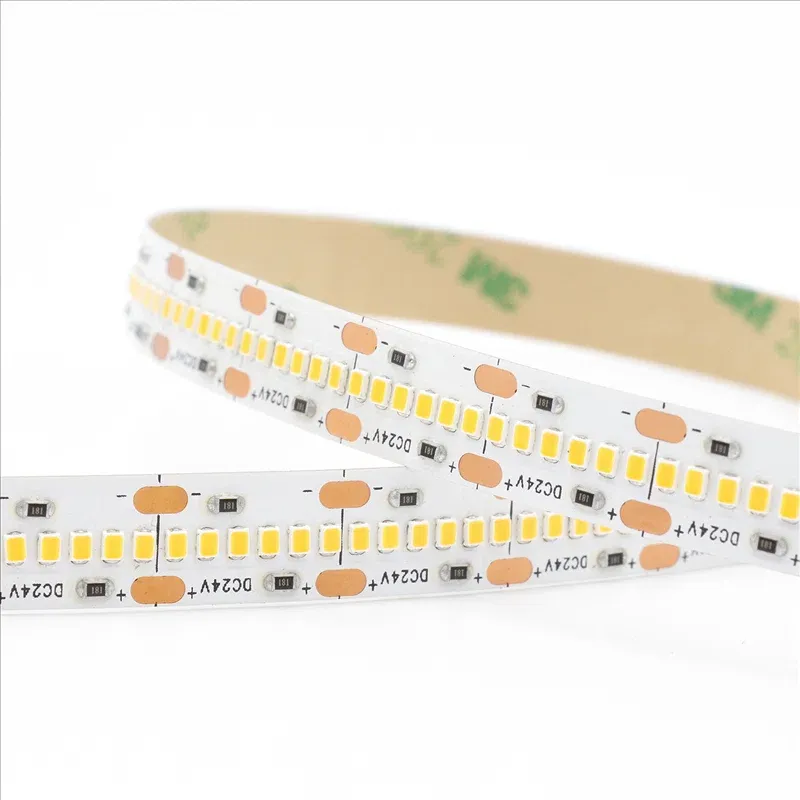

HST-SMD2216-420 | 10mm 420 LEDs/m SMD2216 LED Strip Light
HST-SMD2216-420 is a 10mm PCB SMD2216 LED strip with 420 LEDs/m density and 17 W/m power. Available in 12V/24V DC, with IP20, IP65, IP67 and IP68; IP68 made to order 12-15 days, no MOQ. CRI 90+ suits high-density linear lighting, aluminum profiles, cabinet, furniture, retail and hospitality. OEM/ODM covers voltage, CCT, IP rating, cable, connector and packaging, subject to requirements. Specify voltage, CCT, IP rating, reel length and quantity when requesting a quote.
Specifications
- Model
- HST-SMD2216-420
- LED Type
- SMD2216
- LED Density
- 420 LEDs/m
- PCB Width
- 10 mm
- Voltage
- 12V / 24V DC
- Power
- 17 W/m
- Color Temperature
- 2700K / 3000K / 4000K / 6000K
- CRI
- Ra 90+
- IP Rating
- IP20 Standard / IP65 / IP67 / IP68 Optional
- Cutting Unit
- 7.143 mm (12V) / 14.28 mm (24V)
HST-SMD2216-420 420 LEDs/m SMD2216 High Density LED Strip
HST-SMD2216-420 is a 10mm PCB SMD2216 LED strip with 420 LEDs/m density and 17 W/m power. Available in 12V and 24V DC versions with IP20, IP65, IP67 and IP68 configurations. IP20, IP65 and IP67 are standard configurations supplied without a minimum order quantity. IP68 is not kept in stock and is produced to order with a lead time of 12-15 days and no minimum order quantity. Please confirm the required configuration, quantity and lead time according to the installation environment and project requirements.
Key Specifications
Parameter | Value |
|---|---|
Model | HST-SMD2216-420 |
LED Type | SMD2216 |
LED Density | 420 LEDs/m |
PCB Width | 10 mm |
Voltage | 12V / 24V DC |
Power | 17 W/m |
Color Temperature | 2700K / 3000K / 4000K / 6000K |
CRI | Ra 90+ |
Available Configurations | IP20 (5-7 days) / IP65 & IP67 (10-12 days) / IP68 (12-15 days, made to order) |
Cutting Unit | 7.143 mm (12V) / 14.28 mm (24V) |
Beam Angle | 120° |
Availability & Lead Time
Configuration | Availability | MOQ | Lead Time |
|---|---|---|---|
IP20 | Standard | No minimum order quantity | 5-7 calendar days |
IP65 | Standard | No minimum order quantity | 10-12 calendar days |
IP67 | Standard | No minimum order quantity | 10-12 calendar days |
IP68 | Made to order, not kept in stock | No minimum order quantity | 12-15 calendar days |
There is no minimum order quantity for any IP configuration of this product, so small quantities can be produced for testing, samples or project use. IP68 is produced after the order is confirmed because it is not kept in stock, so a lead time of 12-15 days applies. Please tell us the required quantity, target delivery date and installation conditions, and we will confirm the production schedule and sealing process for your project.
Lead times above are in calendar days and do not include shipping time. Shipping time depends on the destination and selected shipping method.
Why Choose HST-SMD2216-420 High-Density LED Strip
- High LED density — 420 LEDs/m provides smooth, uniform illumination with no visible dot pattern, ideal for close-range viewing and reflective surfaces.
- CRI 90+ color rendering — Ra 90+ delivers accurate color representation for retail displays, hospitality and residential applications where color fidelity matters.
- Multiple protection configurations — IP20, IP65, IP67 and IP68 options for different installation environments. There is no minimum order quantity for any configuration.
- Dual voltage support — 12V and 24V DC versions available to match your existing power supply system.
- Flexible cutting unit — 7.143 mm (12V) / 14.28 mm (24V) allows precise length customization for aluminum profiles and tight spaces.
Typical Applications
HST-SMD2216-420 is designed for applications that require high-density linear lighting with excellent color rendering:
- Cabinet and under-cabinet lighting — 420 LEDs/m eliminates hot spots on reflective cabinet surfaces.
- Furniture lighting — Integrated into shelves, wardrobes and display units where the light source may be visible at close range.
- Retail display lighting — CRI 90+ ensures products are shown in accurate colors.
- Hospitality lighting — Hotel rooms, reception desks and bar areas requiring warm, uniform light.
- Aluminum profile installations — The 10mm PCB width fits standard profile channels for a clean finished look.
For outdoor, underwater or wet-area applications, select the appropriate waterproof configuration and confirm the sealing method, connectors, installation conditions, quantity and lead time before ordering. Note that IP68 is produced to order and is not kept in stock, so a lead time of 12-15 days should be allowed.

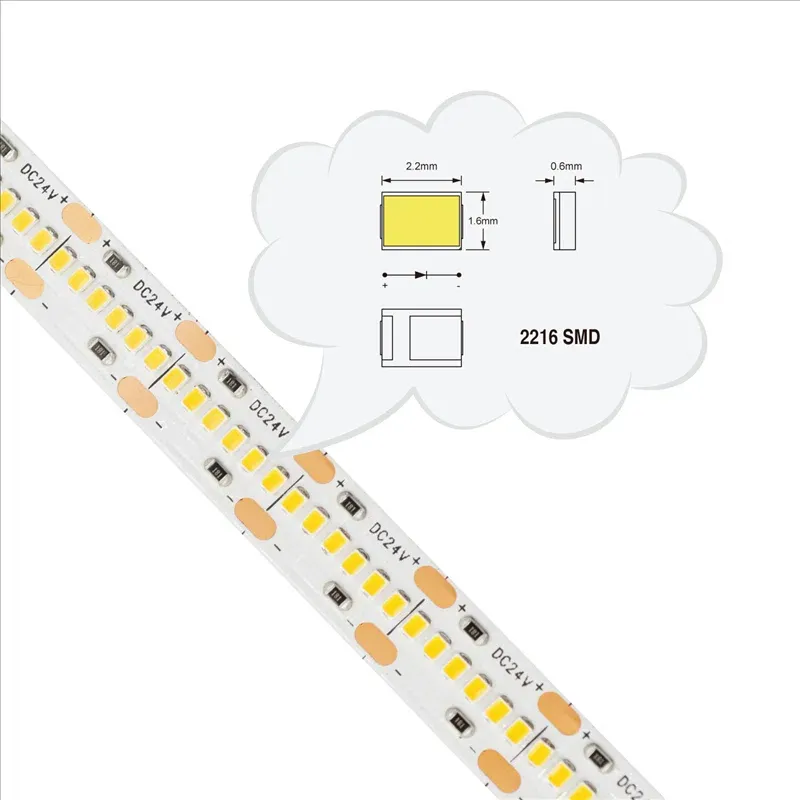

SMD2216 vs SMD2835 — Which One to Choose
Feature | SMD2216 (This Product) | SMD2835 |
|---|---|---|
Chip Size | 2216 (smaller) | 2835 (larger) |
Max Density | Up to 420 LEDs/m | Typically up to 240 LEDs/m |
PCB Width | 10 mm | 8 mm |
Power Consumption | Higher per meter (~17 W/m) | Lower per meter (~9.6 W/m at 120 LEDs/m) |
CRI | Ra 90+ | Ra 80+ |
Best For | Close-range viewing, reflective surfaces, color-critical applications | General lighting, cost-sensitive projects, longer runs |
Price | Higher LED count = higher cost | More economical |
Choose SMD2216 when you need the smoothest possible light output and the highest color accuracy. Choose SMD2835 when you need a balance of performance and cost for general lighting applications.
Quality & Documentation
- Each reel is tested before shipment to verify LED functionality, color consistency and power consumption.
- Compliance documents can be provided for applicable product configurations upon request. Please tell us the target market and required product configuration so the relevant documents can be checked.
Selection Tip
For first-time users, we recommend requesting a sample reel of the IP20 configuration to evaluate light output, color temperature and CRI performance before committing to a larger order. This allows you to confirm that the 420 LEDs/m density and CRI 90+ meet your project requirements.
Request a Quote or Sample
Looking for a high-density SMD2216 LED strip for your lighting project?
Send us your required specifications: voltage, color temperature, IP rating, approximate length and quantity. Our team will review your requirements and help you evaluate a suitable configuration for your project. There is no minimum order quantity. If your project requires the IP68 configuration, please allow a lead time of 12-15 days for production.
OEM / Customization
OEM/ODM options may include voltage, CCT, IP rating, cable type, connector, packaging and label customization, subject to technical feasibility and order quantity. Please share your project specifications and application details for evaluation.
FAQ
Q1: Can I request SMD2216 LED strip samples before bulk production?
Yes. Samples are available for evaluation. We recommend ordering a sample reel of the IP20 configuration to test light output, color consistency, CRI performance and compatibility with your aluminum profiles before placing a larger order. Please tell us the target specifications and application so that the correct configuration can be prepared.
Q2: What customization options are available for SMD2216 LED strips?
Customization options may include voltage (12V/24V), color temperature, CRI, IP protection rating, cable type and length, connector type, packaging and private labeling. Customization is subject to product feasibility, order quantity and project requirements. Please share your project specifications and application details for evaluation.
Q3: What is the maximum running length of SMD2216 LED strip?
The maximum running length depends on the voltage and LED density. For this 420 LEDs/m model at 12V, the maximum single-run length is typically shorter than lower-density models due to higher current draw. Please tell us your planned installation length and voltage so that we can advise on power supply requirements and whether multiple power injection points are needed.
Q4: What applications are suitable for HST-SMD2216-420?
This product is designed for applications requiring high-density, high-CRI linear lighting: cabinet and furniture lighting, retail displays, hospitality interiors and aluminum profile installations where the light source may be visible at close range. The 420 LEDs/m density eliminates visible dot patterns, and CRI 90+ ensures accurate color rendering.
Q5: What is the difference between SMD2216 and SMD2835?
SMD2216 uses a smaller chip size, allowing up to 420 LEDs/m density with CRI 90+, making it ideal for close-range viewing and color-critical applications. SMD2835 uses a larger chip with typical densities up to 240 LEDs/m and CRI 80+, offering a more economical solution for general lighting. SMD2216 has higher power consumption per meter due to the higher LED count. See the comparison table above for details.
Q6: Can you provide compliance documents?
Compliance documents can be provided for applicable product configurations upon request. Please tell us the target market and required product configuration so the relevant documents can be checked.
Q7: Is there a minimum order quantity, and how long does production take?
There is no minimum order quantity for this product. Small quantities can be ordered for testing, samples or project use in any IP configuration. IP20, IP65 and IP67 are standard configurations with lead times of 5-7 days and 10-12 days respectively. IP68 is not kept in stock and is produced to order, with a lead time of 12-15 days. Please tell us the required quantity and your target delivery date so that the production schedule can be confirmed.
Q8: Is the IP68 version in stock, or does it have to be produced?
IP68 is not kept in stock and is produced to order. There is no minimum order quantity for IP68, so small quantities can be produced for evaluation. Production takes 12-15 days after order confirmation. If you need the fastest possible delivery for an initial test, we recommend ordering the IP20, IP65 or IP67 configuration first to evaluate light performance and color consistency.
