White COB LED Strip
HST-COB480 480 LEDs/m COB LED Strip Light
HST-COB480 is a high density COB LED strip light with 480 LEDs/m, dot-free continuous illumination, 10W/m power output and CRI 90+ color rendering. Suitable for architectural lighting, cabinet lighting, linear profiles and OEM lighting projects.
Specifications
- Model
- HST-COB480
- LED Type
- COB
- LED Density
- 480 LEDs/m
- PCB Width
- 8 mm
- Voltage
- 12V / 24V DC
- Power
- 10 W/m
- Color Temperature
- 2700K / 3000K / 4000K / 6000K
- CRI
- Ra 90+
- IP Rating
- IP20 / IP65 / IP67 / IP68
- Cutting Unit
- 25 mm (12V) / 50 mm (24V)
HST-COB480 is an 8mm PCB COB LED strip delivering 480 LEDs/m density with completely dot-free, continuous light output at 10W/m — the proven workhorse for contractors and distributors specifying reliable linear lighting across commercial and residential environments.
Key Specifications
Parameter | Value |
|---|---|
Model | HST-COB480 |
LED Type | COB |
LED Density | 480 LEDs/m |
PCB Width | 8 mm |
Voltage | 12V / 24V DC |
Power | 10 W/m |
Color Temperature | 2700K / 3000K / 4000K / 6000K |
CRI | Ra 90+ |
IP Rating | IP20 / IP65 / IP67 / IP68 |
Cutting Unit | 25 mm(12V) / 50 mm(24V) |
Beam Angle | 180° |
Lifespan | 50,000 hours |
Selection Tip: For 12V systems use the 12V variant; for runs exceeding 5 m, choose the 24V version to minimize voltage drop.
Why Choose HST-COB480 COB LED Strip Light
- True dot-free illumination — 480 LEDs/m eliminates every visible hotspot at 180° viewing angle without external diffusers
- 100 lm/W efficacy — 10 W/m input produces approximately 1000 lm/m, reducing energy costs vs. lower-efficacy strips
- Full IP range (IP20–IP68) — one product family covers dry indoor, splash-proof, and fully submersible applications
- Dual voltage (12V/24V) — simplifies procurement for mixed-infrastructure projects
- CRI 90+ color accuracy — renders colors faithfully for retail, hospitality, and residential specification

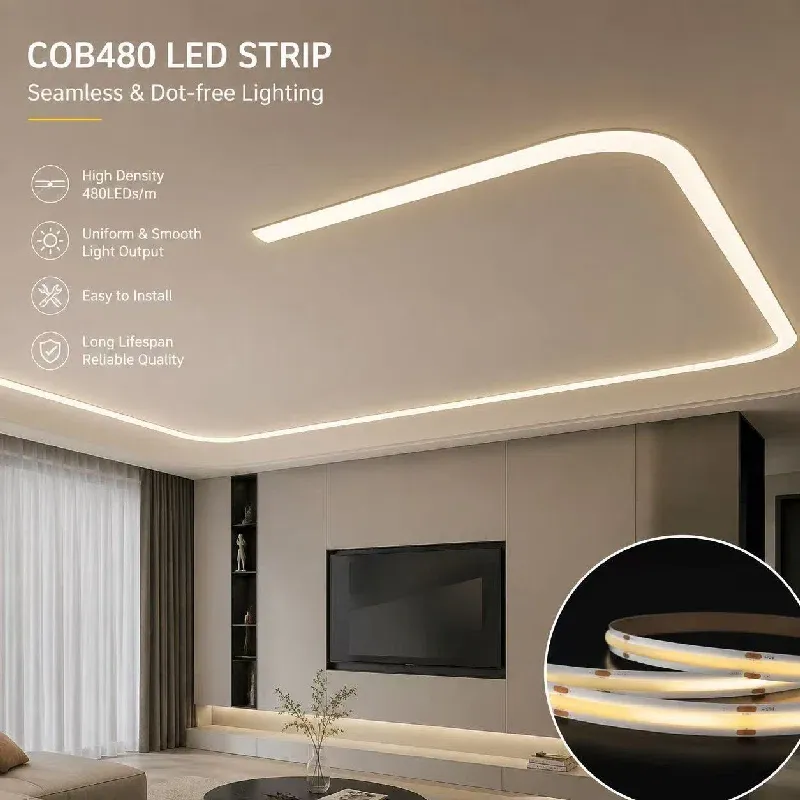

Typical Applications
- Architectural linear lighting
- Cabinet and furniture lighting
- Retail display lighting
- Hotel and hospitality lighting
- Commercial ceiling lighting
Quality & Trust
HST Light COB strips are manufactured with premium phosphor-coated chip-on-board technology, ensuring uniform spectral output across every reel. All products carry CE and RoHS certifications. LM-80/TM-21 lumen maintenance data is available upon request for specification submissions.
Request a Quote or Sample
Ready to specify HST-COB480 for your project? Contact us with your required CCT, CRI, IP rating, and total quantity. Samples are available for evaluation — request yours today.
OEM / Customization
HST Light supports OEM and ODM customization for COB LED strip lighting projects.
We provide customized solutions including PCB width, LED density, power output, voltage options, CCT selection, waterproof solutions, connectors, cable length, and packaging according to your project requirements.
