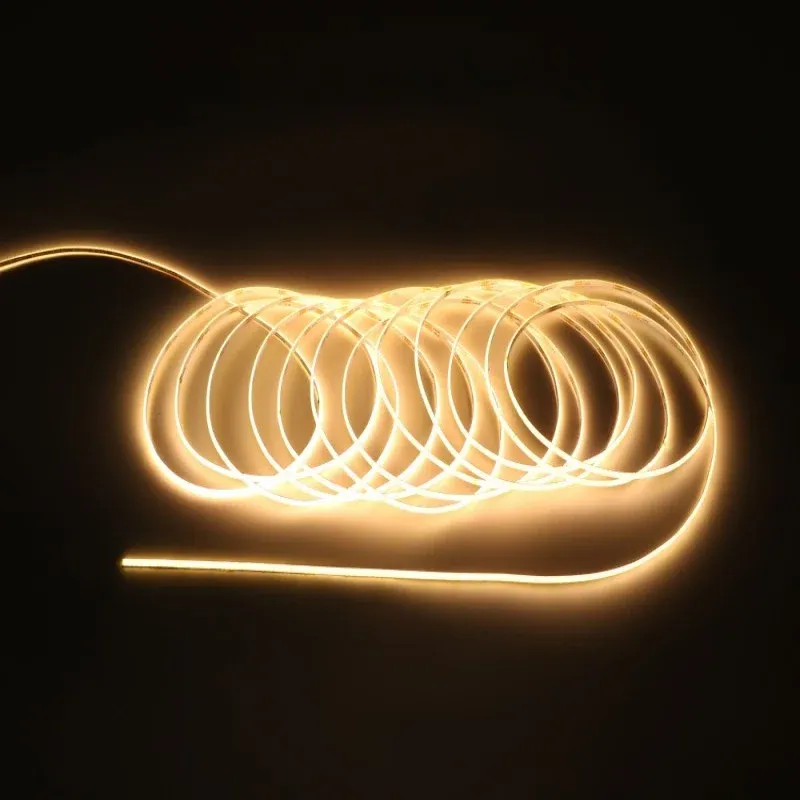

Mini Cutting COB LED Strips
COB 400LEDs 12V/24V-5
Featuring high-density LED chips on FPC, this solution uses phosphor as both a CCT regulator and diffuser to deliver a seamless, dot-free lighting effect. Combining high CRI with high efficacy, it is the perfect choice for shallow-profile under-cabinet lighting applications.
Specifications
- Model No.
- HST-FCOBW400-12/24-05
- Power
- 10W/m
- Lumen output
- 950LM/M
- LEDs/m
- 400LEDs
- Cut Length
- 10mm/20mm
- CRI
- CRI 90+~95+
- Voltage
- 12V/24VDC
Ultra Slim Dot-free 400chips 5mm
Premium COB LED Strip: Dotless & Flexible Lighting
Dotless Illumination: Engineered for consistent, uniform lighting with zero hot spots. This is the ultimate seamless solution for applications requiring a clean, dot-free aesthetic.
Unmatched Flexibility: Utilizing advanced Chip on Board (COB) technology, this strip offers exceptional bending capabilities, easily adapting to tight curves and tiny bend radii.
180° Wide Viewing Angle: Delivers cozy, evenly distributed light across a wide area, significantly enhancing overall visual comfort and lighting performance.
Perfect for Shallow Profiles: Designed as the ideal companion for various shallow aluminum profiles, ensuring flawless, dotless lighting even in compact spaces.
Specification:
CCT/Color | 2700K-6500K / Red / Green / Blue |
Dimmable | Yes (PWM, DALI, 0/1-10V, Triac) |
IP Rating | IP20/IP65/IP66/IP67/IP68 |
Ambient temp. | -35°C~55°C |
Beam Angle | 180° |
Length/reel | 5m ~ 50m |
Lifespan | 50,000Hrs |

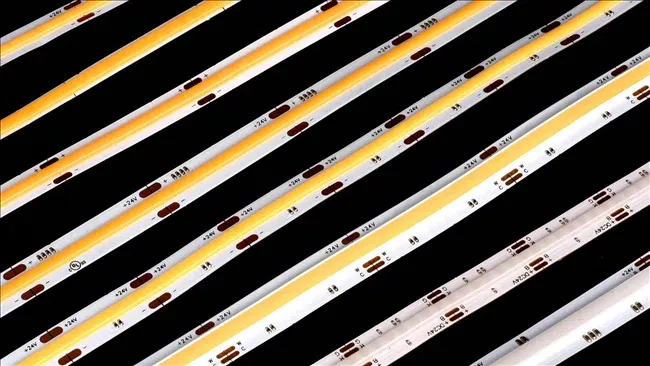

Cut points:
Installation:
