Top Bend Neon Flex
HST-1005 10×5mm Arch Neon Flex LED Strip

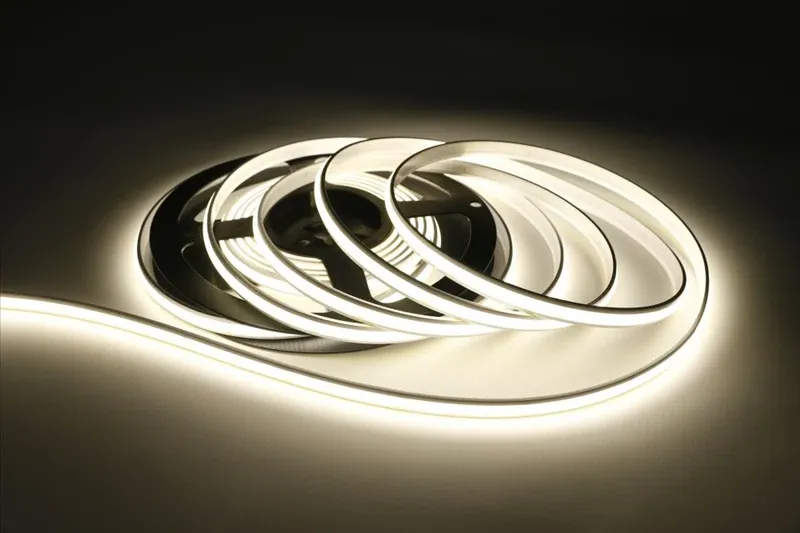

HST-1005 Arch Neon Flex LED Strip is a 10×5mm silicone neon lighting solution designed for architectural and decorative applications. With uniform dot-free illumination, flexible installation, and IP67 protection, it provides reliable linear lighting performance for indoor and outdoor projects. Suitable for facade lighting, landscape lighting, signage, hospitality, and customized lighting projects. Available with different CCT options, dimming solutions, and OEM customization.
Specifications
- Model No.
- HST-1005
- Product Type
- Arch Neon Flex LED Strip
- Size
- 10×5mm
- LED Type
- COB LED
- LED Density
- 480 LEDs/m
- Power
- 10W/m
- Lumen Output
- 800lm/m
- Voltage
- 12V / 24V DC
- CCT
- 2700K / 3000K / 4000K / 6000K
- CRI
- Ra90
- IP Rating
- IP67
- Cutting Unit
- 25mm / 50mm
- Bending Direction
- Top Bend
- Beam Angle
- 120°
- Working Temperature
- -35℃ ~ 50℃
- Length/Reel
- 5m / 10m / 50m
- Lifespan
- 50,000 hours
LED Neon Flex Dot-free 10×5mm Arch Shaped
HST-1005 Arch Neon Flex LED Strip is a compact 10×5mm silicone neon lighting solution designed for architectural and decorative lighting applications.

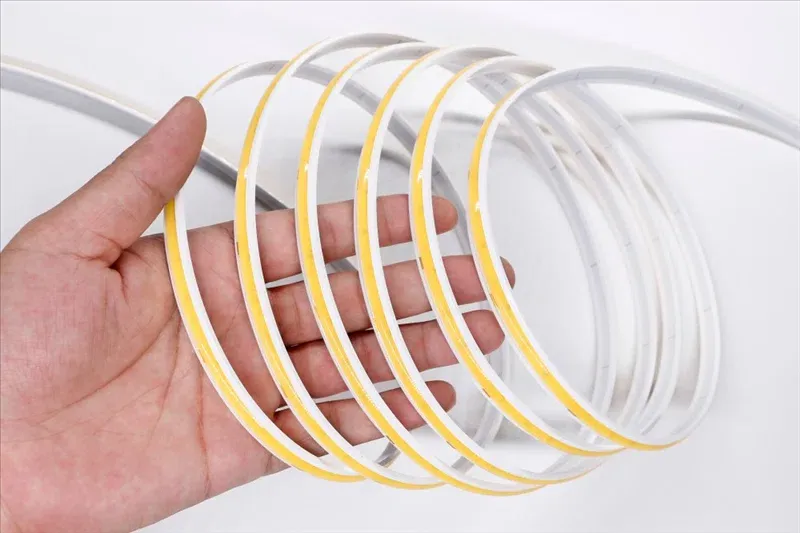

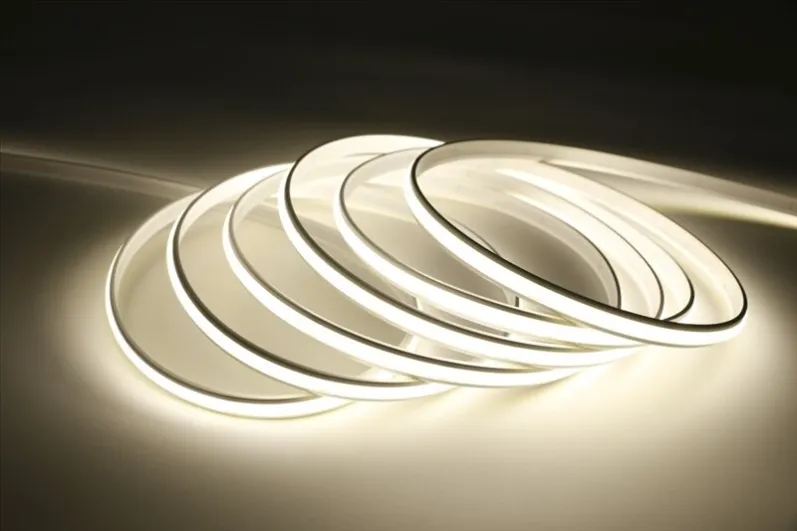

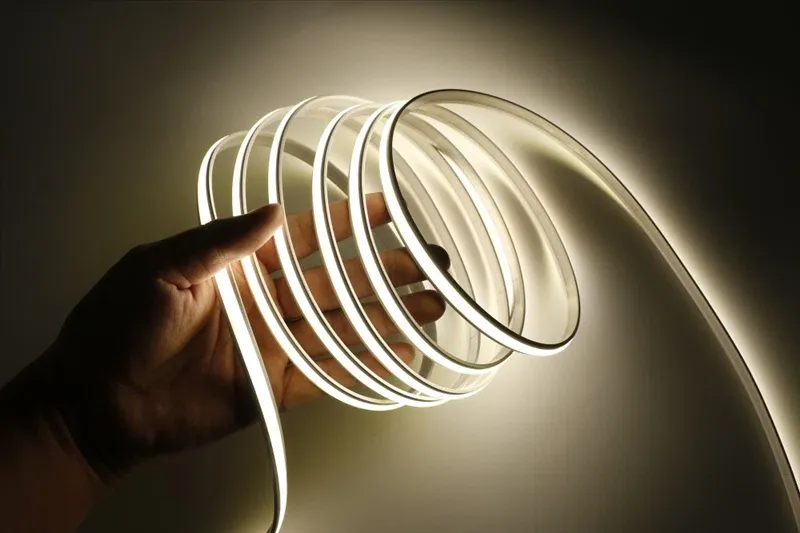

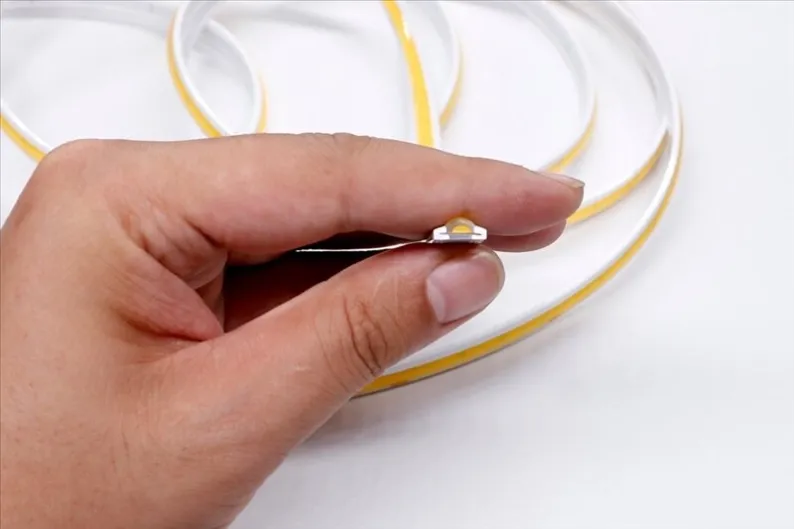

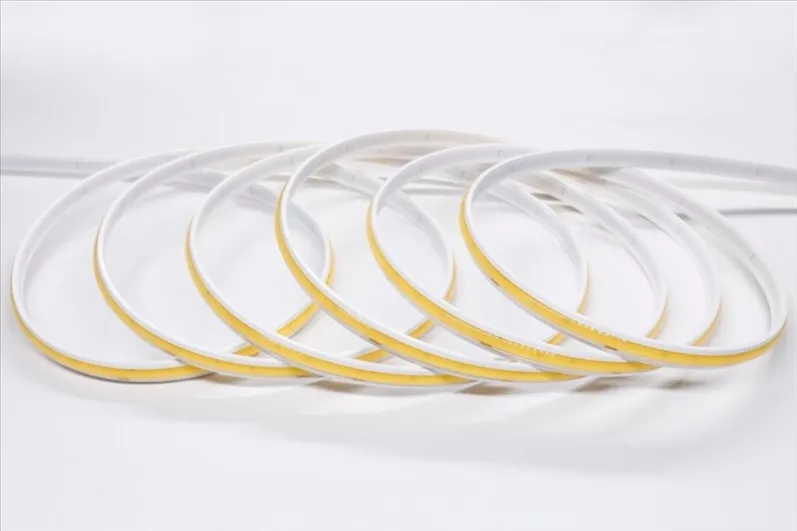

Using COB LED technology with uniform dot-free illumination, this neon flex provides continuous linear lighting without visible LED hotspots. The flexible silicone housing allows smooth bending and easy installation for curved surfaces and customized lighting designs.
With IP67 protection, high color consistency, and flexible customization options, HST-1005 is suitable for indoor and outdoor applications including facade lighting, landscape projects, signage, hospitality spaces, and commercial decoration.
Key Specifications
Parameter | Value |
|---|---|
Model | HST-1005 |
Product Type | Arch Neon Flex LED Strip |
Size | 10×5mm |
LED Type | COB LED |
LED Density | 480 LEDs/m |
Power | 10W/m |
Lumen Output | 800lm/m |
Voltage | 12V / 24V DC |
CCT | 2700K / 3000K / 4000K / 6000K |
CRI | Ra90 |
IP Rating | IP67 |
Cutting Unit | 25mm / 50mm |
Bending Direction | Top Bend |
Beam Angle | 120° |
Working Temperature | -35℃ ~ 50℃ |
Length/Reel | 5m / 10m / 50m |
Lifespan | 50,000 hours |
Selection Tip
For curved lighting designs, select the correct bending direction according to the installation requirement.
For longer installation distances, 24V versions are recommended to reduce voltage drop and maintain stable brightness.
Choose suitable waterproof accessories and mounting solutions according to the installation environment.
Why Choose HST-1005 Arch Neon Flex LED Strip
- True dot-free illumination — COB LED technology provides smooth and continuous lighting without visible LED points.
- Compact 10×5mm design — Fits narrow installation spaces and supports modern architectural lighting designs.
- Flexible silicone housing — Enables curved installation and creative lighting applications.
- IP67 waterproof protection — Suitable for indoor and outdoor environments requiring reliable durability.
- High color consistency — Provides uniform lighting performance for professional architectural and commercial projects.
- OEM customization capability — Supports customized length, CCT, cable solutions, connectors, and packaging.
Typical Applications
- Building facade lighting
- Landscape and garden lighting
- Hotel and hospitality lighting
- Signage and channel letter lighting
- Interior decorative lighting
- Commercial and retail lighting projects
- Architectural contour lighting
Quality & Trust
HST Light Neon Flex products use high-quality silicone extrusion and reliable LED technology to ensure consistent lighting performance and long-term stability.
Each production batch is tested for appearance, electrical parameters, waterproof performance, and lighting consistency before shipment.
CE and RoHS compliance documents are available according to customer requirements.
Request a Quote or Sample
Need a customized Neon Flex lighting solution?
Send us your required size, bending direction, CCT, IP rating, length, and application details.
Our engineering team will recommend the suitable solution and provide technical support for your project.
OEM / Customization
HST Light provides OEM and ODM customization services for Neon Flex LED lighting projects.
Customization options include:
- Neon Flex size and shape
- Top Bend / Side Bend solutions
- Custom CCT and CRI requirements
- RGB / RGBW lighting solutions
- Custom length and cable direction
- Waterproof connectors
- Mounting accessories
- Packaging and labeling
From prototype samples to mass production, our engineering team supports customers in developing reliable customized lighting solutions.
FAQ
Q1: Can I request Neon Flex LED strip samples before bulk production?
Yes. HST Light provides samples for testing and approval before mass production.
Customers can verify:
- Lighting effect
- Color consistency
- Installation compatibility
- Waterproof performance
Our engineering team can also recommend suitable solutions based on your application requirements.
Q2: What customization options are available for Neon Flex LED strips?
HST Light supports customization based on project requirements, including:
- Size and shape
- Bending direction
- Voltage (12V / 24V)
- CCT and CRI
- RGB / RGBW solutions
- Cable length
- Connectors
- Waterproof solutions
- Packaging and labeling
Please share your project specifications and application details for evaluation.
Q3: What is the difference between Neon Flex and normal LED strips?
Neon Flex LED strips use silicone extrusion technology to create a continuous lighting appearance and provide better protection for curved and outdoor applications.
Normal LED strips are mainly used with aluminum profiles or protected installation environments.
The suitable choice depends on the required lighting effect, installation method, and project conditions.
Q4: Can Neon Flex LED strips be used outdoors?
Yes. IP67 Neon Flex versions are designed for outdoor applications such as building facade lighting, landscape lighting, and decorative projects.
The correct waterproof accessories and installation methods should be selected according to the environment.
Q5: What information is needed for a customized Neon Flex project?
Please provide:
- Installation environment
- Required length
- Bending direction
- CCT/color requirements
- Voltage
- Quantity
- Application details
Our engineering team will evaluate your requirements and recommend the suitable solution.
