Features:

1. Light efficacy up to 120Lm/w

2. 2835 60leds 24V

3. 3-5 years warranty

4. 0-10V/Dail/PWM Dimmable

Electrical technical data:

Input voltage	24VDC	Voltage range	23-25VDC

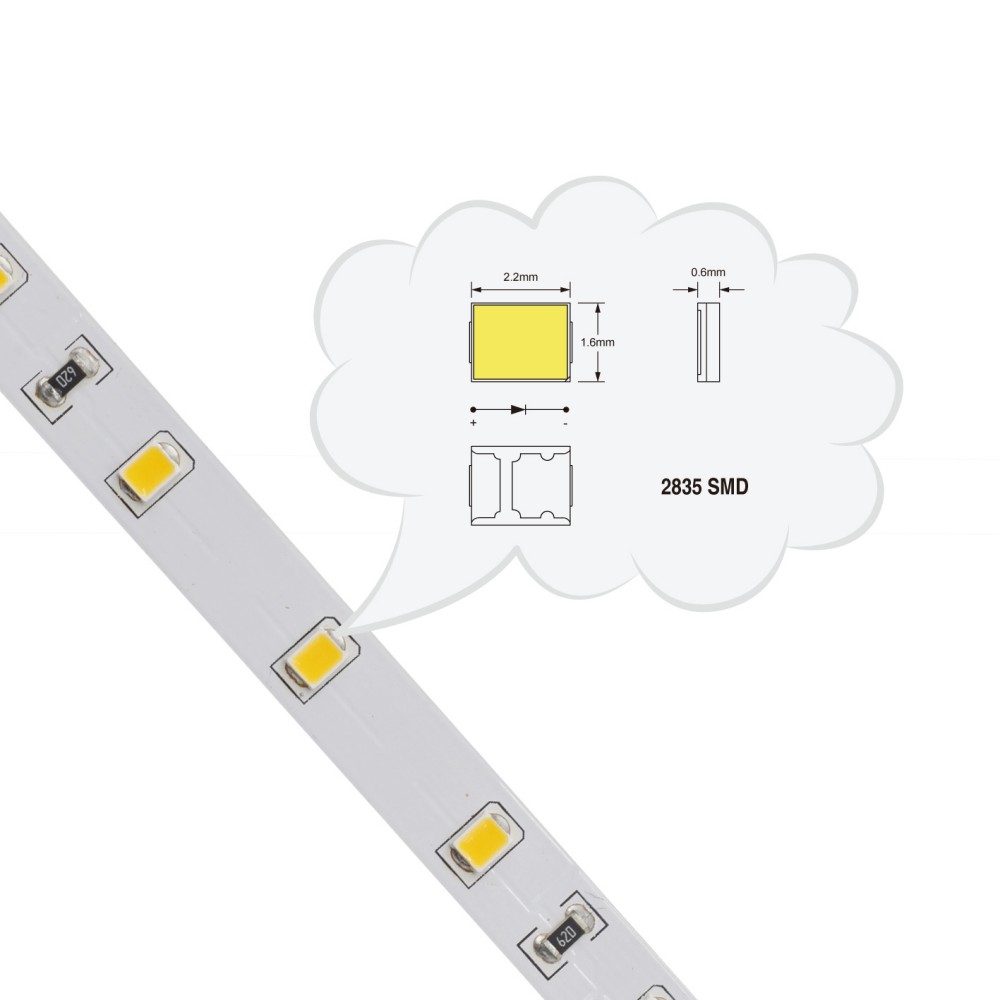

LED types	2835 SMD	Dimension	L5000W8H1.2MM
LED QTY/m	60PCS	PCB Width	8mm
IP rating	IP20,IP65,IP67,IP68	Cut points	100mm
Beam angle	120°	Material of coating	N/A
Bend radius	R＜50mm	Length/reel	0.1 to 50meters
Dimming function	PWM/0-10V/DALI	Standard length/reel	5meters
Connection	20AWG wire/DC connector	Installation	3M 9495 300LSE

Light technical data:

Part number	HST-F28X60-24-8
Power/m	9.6W
CCT	1800K-6500K
Lumen output / m	900-1050LM
Efficacy	90-110LM/W
Maxrun in series	5M
SDCM	SDCM＜3
CRI	RA＞80 / RA＞90 / RA＞95
Warranty	5 Years

Temperature data

Operating temp. (Tc)	-25 - 70ºC	Storage temp. (Ts)	-30 - 80ºC
Ambient temp. (Ta)	-25 - 45ºC	Lifespan	30,000Hrs

Cut points
